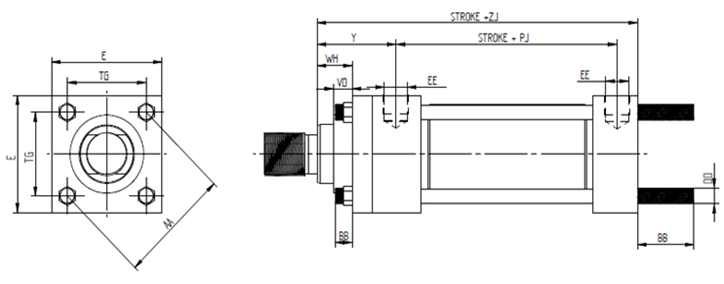

Model 11 Cap Extended Tie Rod Mount (ISO MX2)
These mounts are for straight line force transfer applications. The cap extended tie rod mount is recommended for compression (pushing) applications.The mounting surface should be flat and the frame on which the cylinder is mounted must be sufficiently rigid to resist bending moments. Once fitted into the application framework, the nuts which are provided should be torqued to the values listed in the table (right).
| Bore | AA | BB | DD | E | EE BSP | TG | WH | VD | Y | Stroke+ | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PJ | ZJ | ||||||||||
| 25 | 40 | 19 | M5 x 0.8 | 40 | 1/4" | 28.3 | 15 | 5 | 50 | 53 | 114 |
| 32 | 47 | 24 | M6 x 1 | 45 | 1/4" | 33.2 | 25 | 5 | 60 | 56 | 128 |
| 40 | 59 | 35 | M8 x 1 | 63 | 3/8" | 41.7 | 25 | 5 | 62 | 73 | 153 |
| 50 | 74 | 46 | M12 x 1.25 | 75 | 1/2" | 52.3 | 25 | 5 | 67 | 74 | 159 |
| 63 | 91 | 46 | M12 x 1.25 | 90 | 1/2" | 64.3 | 32 | 5 | 71 | 80 | 168 |
| 80 | 117 | 59 | M16 x 1.5 | 115 | 3/4" | 82.7 | 31 | 5 | 77 | 93 | 190 |
| 100 | 137 | 59 | M16 x 1.5 | 130 | 3/4" | 96.9 | 35 | 5 | 82 | 101 | 203 |
| 125 | 178 | 81 | M22 x 1.5 | 165 | 1" | 125.9 | 35 | 5 | 86 | 117 | 232 |
| 160 | 219 | 92 | M27 x 2 | 205 | 1" | 154.9 | 32 | 5 | 86 | 130 | 245 |
| 200 | 269 | 115 | M30 x 2 | 245 | 1-1/4" | 190.2 | 32 | 5 | 98 | 165 | 299 |
